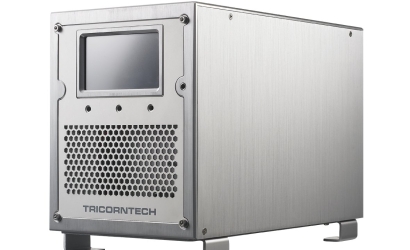

MiTAP SFT Series
Product Advantages
? Continuous monitoring of individual target VOCs
? Lab-grade precision (limit of detection < 1 ppb)
? Easy to carry and operate, can be relocated to track down potential problems
? Made in Taiwan and fully customizable to meet customer specifications
? Low consumable costs to increase cost-effectiveness
? Continuous monitoring of individual target VOCs
? Lab-grade precision (limit of detection < 1 ppb)
? Easy to carry and operate, can be relocated to track down potential problems
? Made in Taiwan and fully customizable to meet customer specifications
? Low consumable costs to increase cost-effectiveness
-
Detection Capability Individual VOCs Detection Range 0.1 ~ 50 ppbv Limit of Detection (LoD) ≤ 0.2 ppb for Toluene in 30 min List of VOCs (target) * Acetone; IPA; tVOC Data output frequency 5mins~10mins/per measured point User Interface Touch Screen 1 I/O Ports RJ45 1 Physical Requirement Dimensions (H x W x D) 25cm x 19cm x 35 cm Weight 6.0 ~ 8.5 Kg Electrical Specifications AC Input Voltage 85V ~ 264V AC AC Input Current 4.5A / 115VAC, 2.5A / 230VAC Current Frequency 47 / 63 Hz Environment Operation Temperature 20?C ~ 30?C Storage Temperature 0?C ~ 50?C Relative Humidity Operating: 0% ~ 80%.Non-condensing
Non-operating: 0% ~ 90%.Non-condensingWarranty 1 year Remark -
Chasis
- Indoor multi-channel manifold system
- 2~32 sampling spots designed based on customization
- Auto-sampling system with flexibility to integrate single or multiple analyzers
- Smart user interface, custom made to Customer’s best convenience
- Integrated with Customer’s control center, suitable for whole-fab monitoring
Cart
- Transportable stainless cart
- Integrates UPS, PC and VOC analyzer for multiple sampling spot monitoring/trouble-shooting
- Suitable for whole-fab ambulatory monitoring
-
